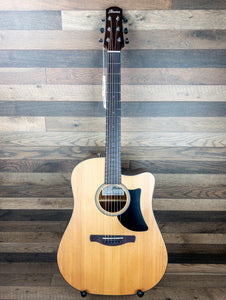

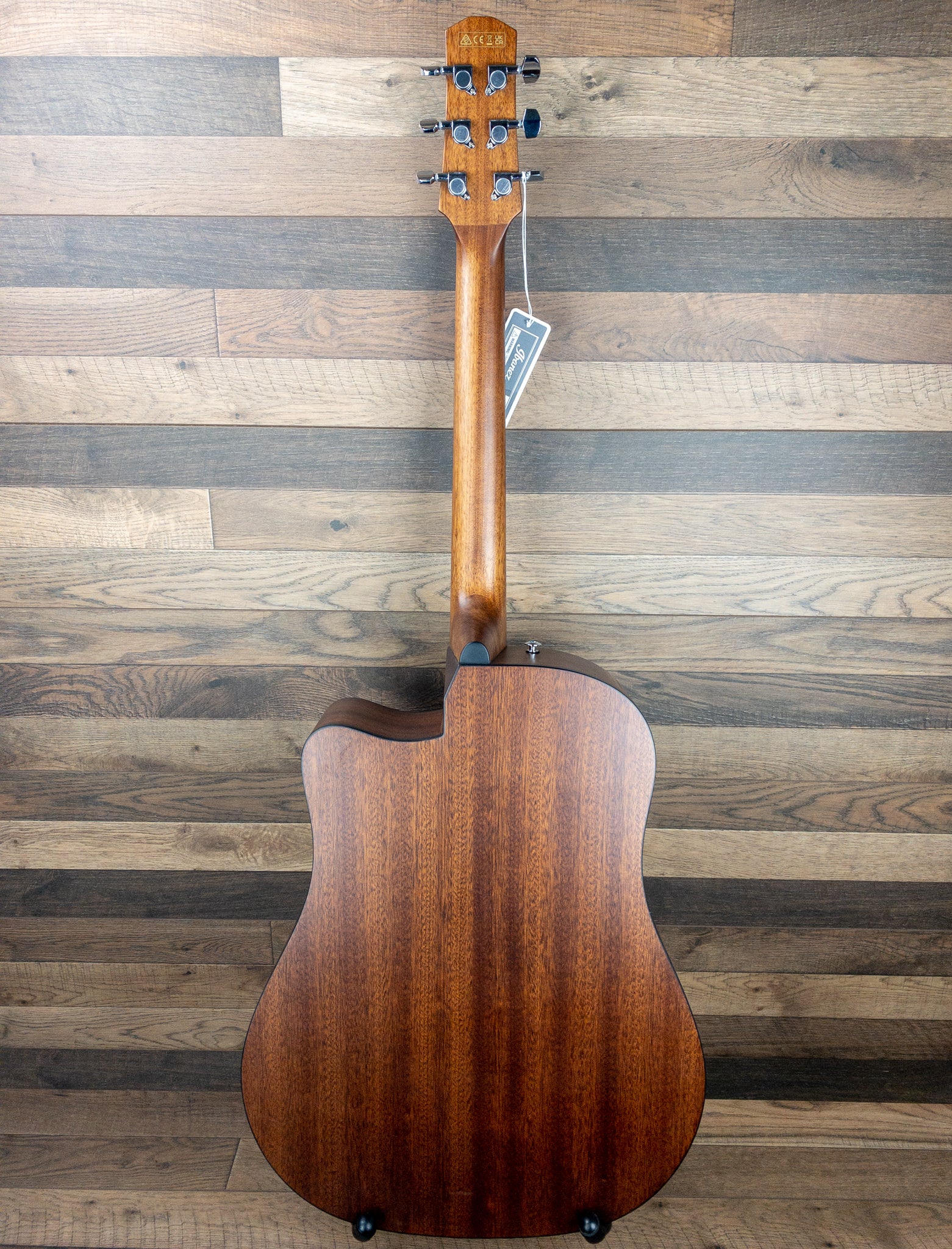

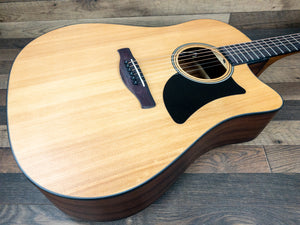

Ibanez AAD50CE-LG Advanced Acoustic Electric Guitar LG-Natural Low Gloss
SPECS
- body shape
- Grand Dreadnought with Advanced Access Cutaway body
- bracing
- X-M Bracing
- top

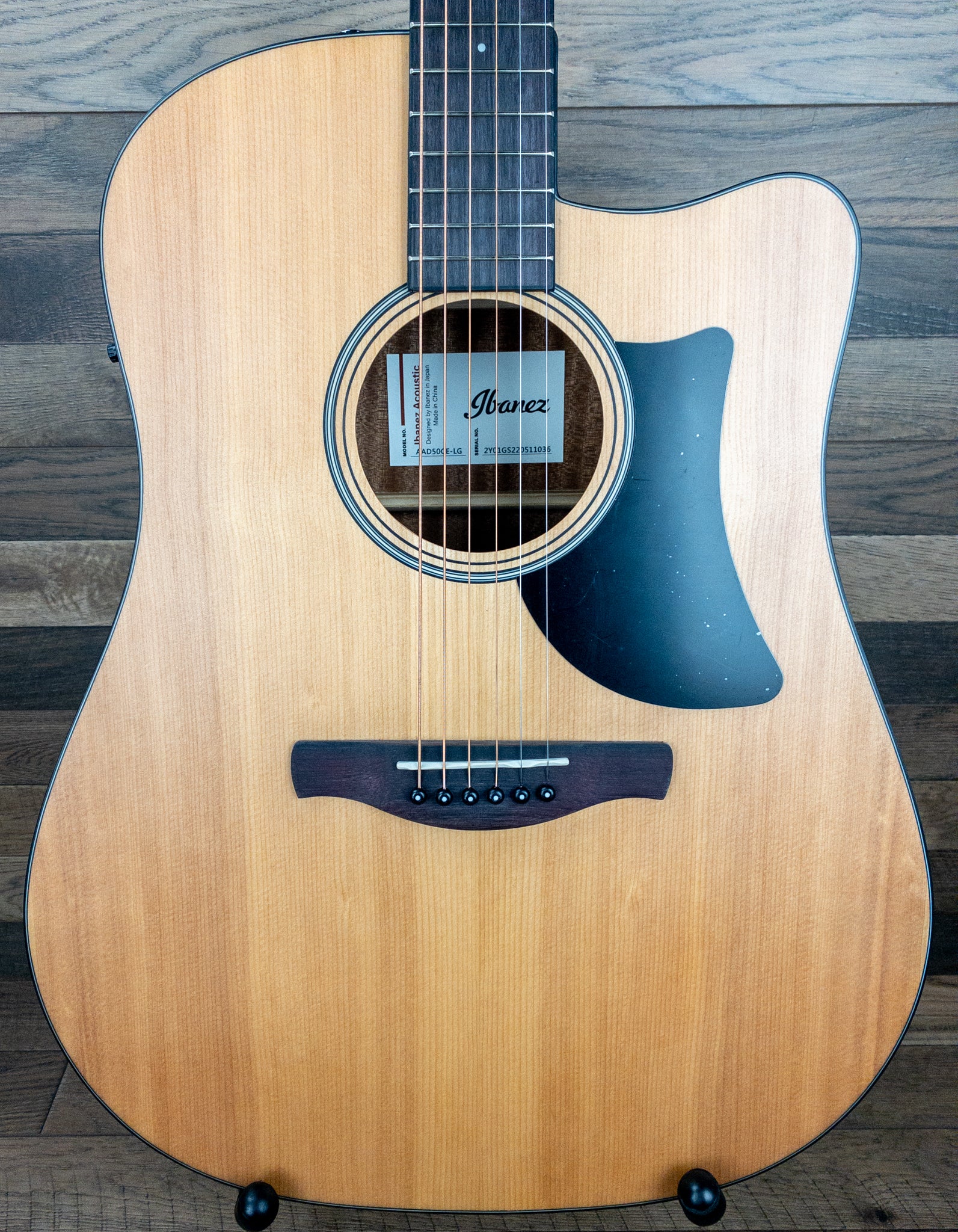

- Solid Sitka Spruce top
- back & sides

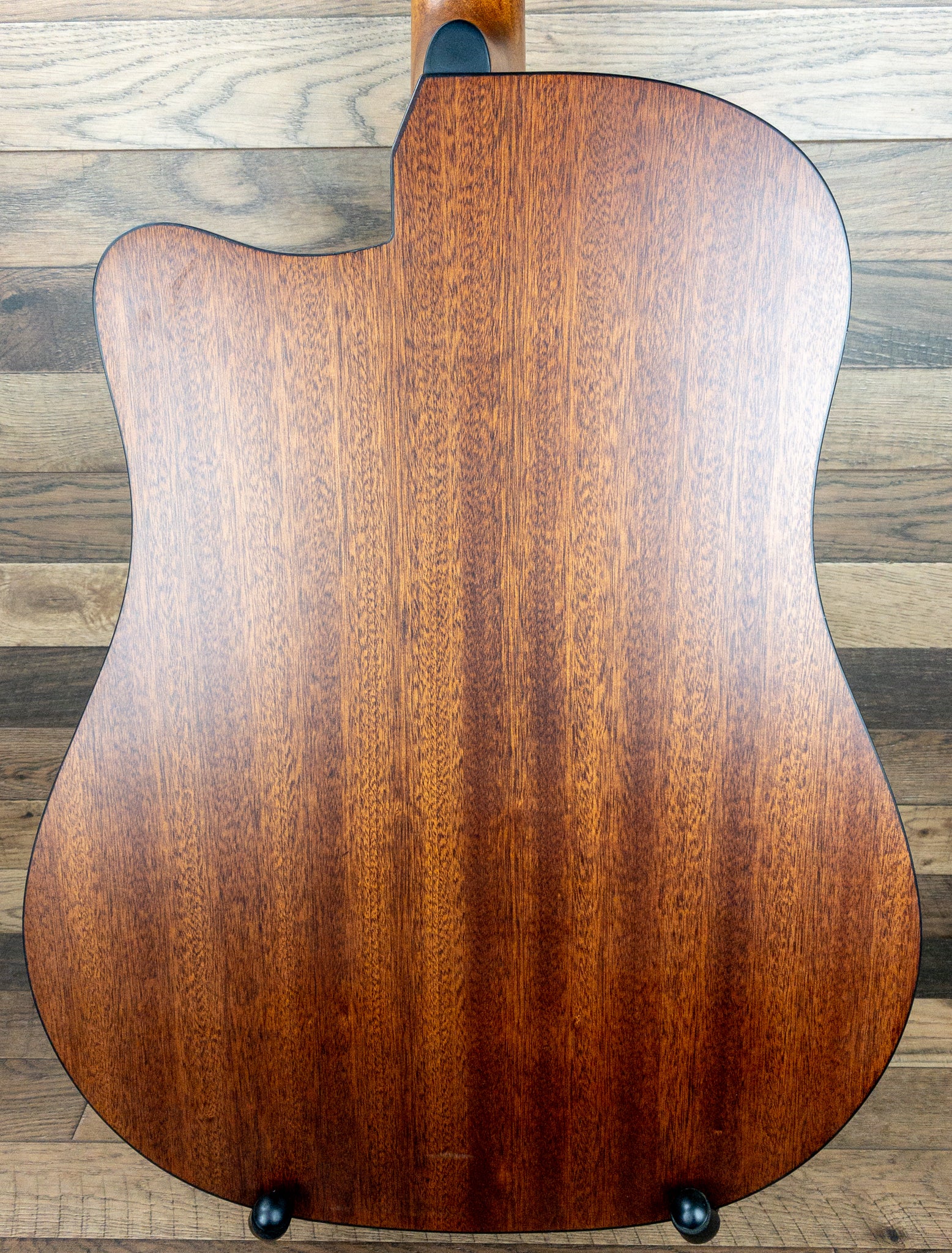

- Sapele back & Sapele sides
- neck
- AAD Okoume neck
- fretboard
- Purpleheart fretboard
- bridge
- Purpleheart bridge
- inlay
- White dot inlay
- sound hole rosette
- Black & White multi rosette
- tuning machine

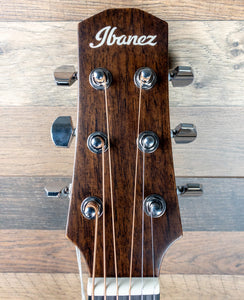

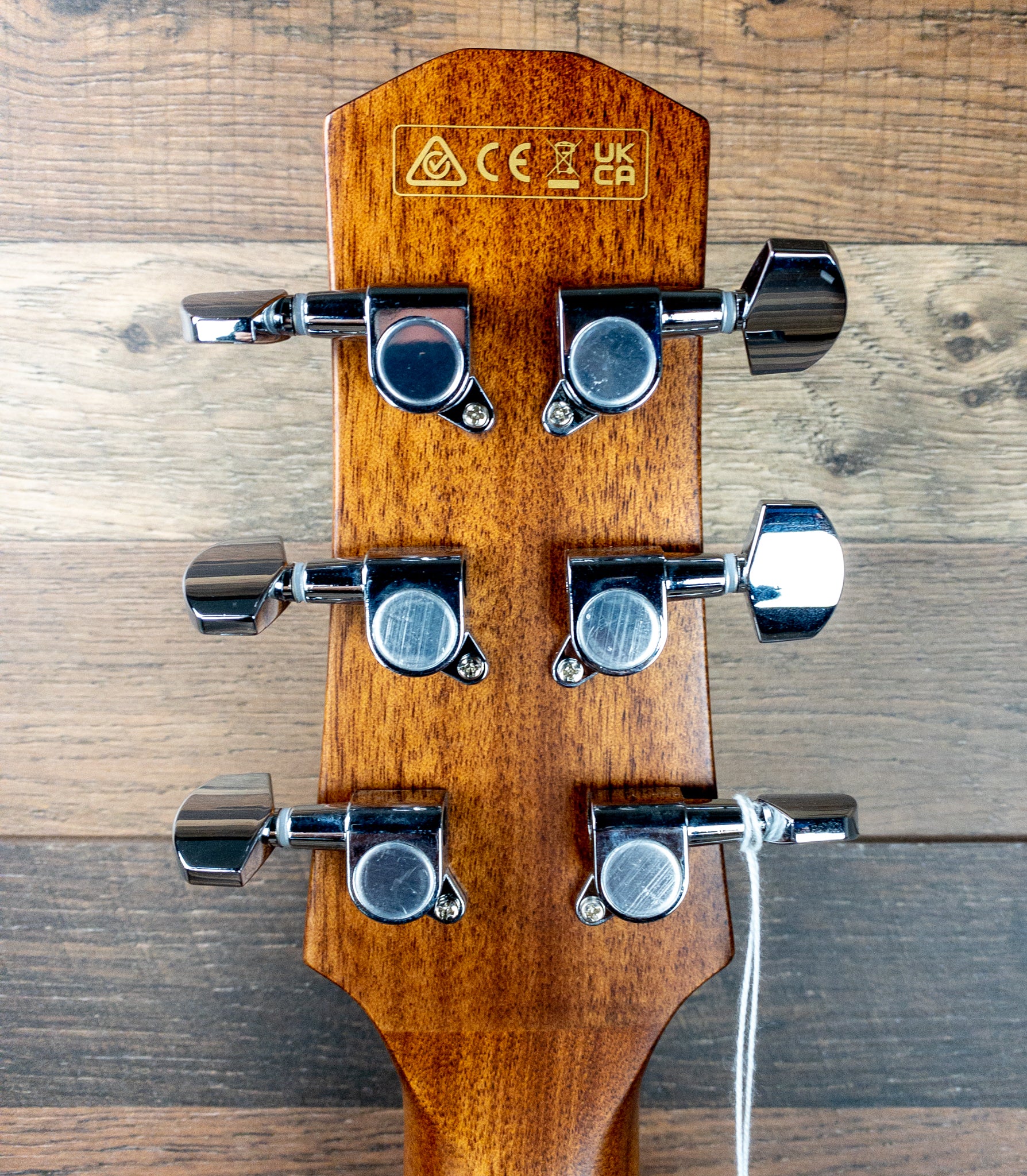

- Chrome Die-cast tuners (18:1 gear ratio)
- number of frets
- 20
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® EXP16
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez T-bar Under saddle
- preamp
- Ibanez AEQ-TP2 pre-amp w/Onboard tuner
- output jack

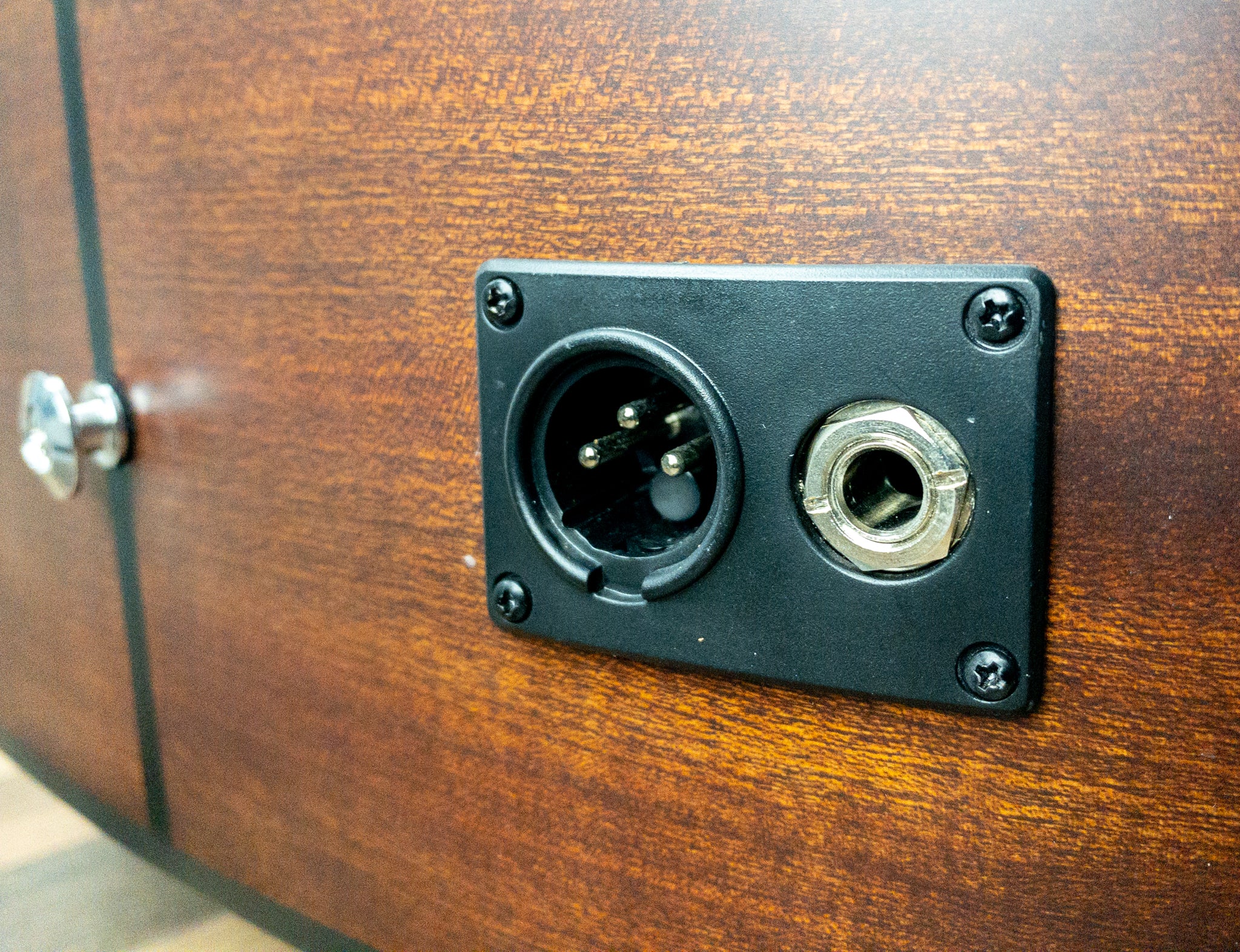

- Balanced XLR & 1/4" outputs
NECK DIMENSIONS
-
- Scale :
- 650mm
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 400mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
BODY DIMENSIONS
-
- a : Length
- 20 3/8"
- b : Width
- 16 1/4"
- c : Max Depth
- 5 "
-
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION

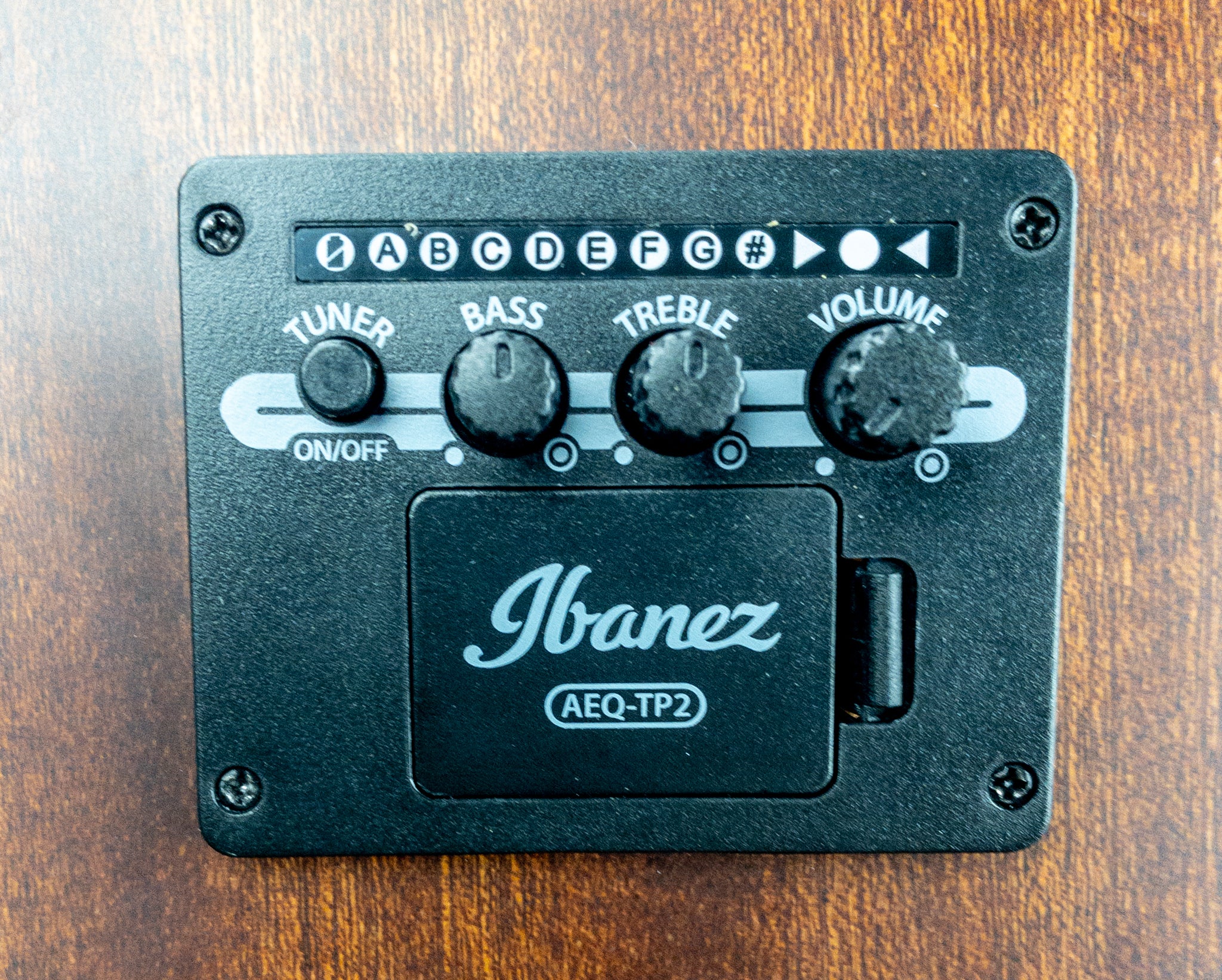

The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
